What is Velolaser Speed Radar Technology
Right, let me tell you about the Velolaser speed radar – and trust me, I’ve got personal experience with this sneaky little device after getting nicked by one just last week on the CV-905 near Torrevieja. These portable speed radar units are revolutionising how the DGT (Dirección General de Tráfico) catches speeders across Spain, and they’re bloody effective at it.
When the post delivery knocked on the door the other week, I wondered if it was a late birthday card, as it is very rare, I get letters. Alas, I was asked for my TIE and had to sign for this letter, which was from the DGT.
The Velolaser speed radar represents the latest generation of traffic enforcement technology deployed on Spanish roads. Unlike the traditional fixed speed cameras you’ll spot mounted on gantries or the bulky mobile radar units that require a patrol car, these compact laser-based systems are designed to be virtually invisible until it’s too late. They’re small, portable, and can be positioned almost anywhere – which is exactly why I didn’t see the one that caught me doing 78 km/h in a 50 zone.
What makes Velolaser technology particularly significant in modern traffic enforcement is its combination of advanced laser detection capabilities with extreme portability. The DGT has invested heavily in these systems specifically because they can be deployed rapidly in accident blackspots, school zones, and areas where speeding has become problematic. The psychological impact is considerable too – drivers never know where these units might be lurking, which theoretically encourages better speed compliance across the board.
The portable speed radar market has evolved considerably over the past decade, but Velolaser represents a quantum leap in terms of discretion and effectiveness. Traditional radar detectors that drivers use to spot enforcement zones have a much harder time picking up these laser-based systems, making them particularly effective at catching habitual speeders who’ve become complacent with conventional radar technology.
Technical Specifications and Features of Velolaser Radars
Let’s dig into what makes these devices so effective – and so difficult to spot until you see the flash in your rearview mirror.
Physical Dimensions and Portability (50cm Height, 2kg Weight)
The Velolaser speed radar is remarkably compact, standing just 50 centimetres tall – about the height of a large water bottle. At only 2 kilograms, a traffic officer can easily carry several units and deploy them quickly at different locations throughout a shift. This is a game-changer compared to the older mobile radar systems that required significant setup time and were far more conspicuous.
The compact design means these units can be concealed behind road furniture, positioned on narrow bridge parapets, or even held by officers on foot patrol. I’ve seen them tucked behind rubbish bins, positioned in roadside vegetation, and mounted on motorway bridge railings where they’re virtually impossible to spot at driving speeds. The lightweight construction also means officers can reposition units quickly if they’re not catching enough violations in one location – they simply pack up and move 500 metres down the road.
Speed Detection Range (15-250 km/h Capability)
The Velolaser’s detection range covers speeds from 15 km/h right up to 250 km/h, making it effective in virtually any traffic environment imaginable. Whether you’re crawling through a residential zone or hammering down the AP-7 motorway, this device can accurately measure your speed.
The lower threshold of 15 km/h means these radars are perfectly suited for enforcement in pedestrian zones, school areas, and narrow village streets where speed limits might be 20 or 30 km/h. At the upper end, the 250 km/h capability covers even the fastest legal speeds on Spanish motorways (120 km/h) with plenty of headroom for detecting serious speeders who might be doing double the limit.
This wide operational range gives the DGT tremendous flexibility in deployment. The same unit that clocks cars in a 30 km/h village zone at lunchtime can be repositioned to a motorway slip road by evening rush hour without any reconfiguration needed.
Detection Distance (15-50 Meters Range)
The effective detection range of 15 to 50 metres gives officers the perfect sweet spot for enforcement. At 15 metres, the laser beam is narrow and highly accurate, making it impossible for drivers to claim the radar caught a different vehicle. At 50 metres, officers have enough distance to safely capture evidence and identify the vehicle before it passes their position.
This operational range also makes the Velolaser speed radar ideal for use in varied terrain. On narrow secondary roads with limited visibility, officers can position themselves closer to oncoming traffic. On wider highways with longer sight lines, they can work from further back, making the setup even harder to spot until drivers are well within the detection zone.
The laser technology employed by Velolaser allows for precise targeting of individual vehicles even in dense traffic conditions. Unlike traditional doppler radar that can sometimes struggle to identify which specific vehicle triggered a speed reading in multi-lane scenarios, the laser beam’s narrow focus eliminates ambiguity.
Battery Life and Autonomous Operation (5-Hour Runtime)
One of the most impressive features of the Velolaser speed radar system is its five-hour battery life, allowing completely autonomous operation without the need for a power supply. This means officers can position these units in remote locations without access to mains electricity or even a patrol vehicle.
The five-hour runtime is sufficient for an entire morning or afternoon enforcement shift. In practical terms, an officer can deploy a Velolaser unit at 7:00 AM to catch morning commuters, monitor it remotely throughout the morning, and retrieve it at noon – all without worrying about battery depletion. The wireless connectivity features mean the officer doesn’t even need to remain at the deployment site, allowing them to monitor multiple locations simultaneously.
The portable speed radar’s battery system is designed for rapid charging, and many DGT traffic units carry multiple battery packs, allowing them to swap out depleted batteries and maintain continuous enforcement coverage throughout extended operations. This autonomous capability has fundamentally changed how traffic enforcement operates in Spain, enabling persistent monitoring of problematic areas that were previously difficult to police effectively.
Discover unforgettable experiences with Viator — from city tours and cultural excursions to wine tastings and scenic boat trips worldwide.For walking tours, bus tours, wine tasting, sunset boat trips and much more, check out Viator
How Velolaser Speed Radar Technology Works
Understanding how these devices actually measure your speed helps explain why they’re so accurate – and so difficult to contest in court.
Laser-Based Doppler Effect Measurement
The Velolaser system uses laser technology combined with doppler effect principles to calculate vehicle speeds with extraordinary precision. Unlike traditional radar that broadcasts radio waves across a wide area, laser-based speed detection uses a tightly focused beam of light, making measurements far more accurate and vehicle-specific.
Infrared Laser Pulse Technology
The Velolaser speed radar emits infrared laser pulses that are invisible to the human eye. These pulses travel at the speed of light and reflect off the surface of target vehicles. The laser wavelength used is specifically chosen because it reflects well off vehicle bodywork and number plates while being unaffected by most weather conditions.
The infrared laser operates in rapid bursts, sending out hundreds of pulses per second. Each pulse travels to the target vehicle and bounces back to the Velolaser’s receiver. The system’s processor analyses these returning pulses with incredible precision, measuring the time taken for each pulse to complete its round trip.
Because the laser beam has a very narrow divergence angle (typically less than 3 milliradians), it remains focused on a specific vehicle even at the maximum 50-metre detection range. This narrow beam is precisely why you can’t argue that the radar caught someone else’s speed when you were the one speeding – the laser literally targeted your vehicle specifically.
Speed Calculation Through Distance-Time Analysis
The Velolaser calculates speed by measuring how the distance to the target vehicle changes over time. By sending multiple laser pulses in rapid succession and precisely measuring how long each pulse takes to return, the system can determine whether the vehicle is moving toward or away from the radar and at what rate.
This distance-time analysis is fundamental physics: if the laser pulse takes progressively less time to return to the receiver, the vehicle is approaching the radar. By calculating the rate of distance change, the processor determines the vehicle’s speed. Multiple measurements are taken within fractions of a second and averaged to provide an extremely accurate final speed reading.
The beauty of this laser-based approach is its precision. Traditional doppler radar measures frequency shifts in reflected radio waves, which can be affected by vehicle size, shape, and reflectivity. Laser distance-time measurement is far less susceptible to these variables, producing reliable readings regardless of whether you’re driving a tiny Fiat 500 or a massive Mercedes Sprinter van.
Wireless Connectivity and Remote Control
This is where Velolaser technology gets properly sophisticated – and rather Orwellian if I’m honest.
WiFi and 4G/3G Data Transmission
The Velolaser speed radar units are equipped with both WiFi and cellular data connectivity (4G/3G networks), enabling real-time communication between the radar and traffic enforcement officers. This wireless capability means an officer can deploy a radar unit and monitor it from a patrol car parked several hundred metres away – or even from a completely different location.
When the radar detects a speeding vehicle, it immediately transmits the violation data, including speed reading, timestamp, and photographic evidence, to the officer’s control tablet or laptop. This remote transmission capability allows a single officer to monitor multiple radar locations simultaneously, dramatically increasing enforcement efficiency.
The cellular connectivity also means these portable speed radar systems can be deployed in locations where WiFi isn’t available. Whether positioned on a remote mountain pass or a rural secondary road, as long as there’s mobile phone coverage, the Velolaser can communicate with enforcement officers.
Real-Time Monitoring Capabilities
The real-time monitoring features of Velolaser systems allow officers to observe traffic patterns, adjust detection parameters, and respond to violations as they occur. The officer’s control interface displays live speed readings, traffic density, and violation alerts, giving them complete situational awareness without being physically present at the radar location.
This remote capability has strategic advantages beyond just officer convenience. By monitoring from a concealed position, officers can coordinate with mobile patrol units to intercept serious speeders further down the road, conduct more thorough vehicle inspections, and ensure violators are safely pulled over rather than attempting to stop vehicles immediately adjacent to the radar location.
The wireless connectivity also facilitates data analysis and reporting. All speed measurements, violation records, and photographic evidence are automatically uploaded to central DGT databases, creating comprehensive records of traffic patterns and enforcement activities that inform future deployment strategies.
DGT Implementation and Deployment Strategy
The Spanish traffic authority hasn’t just bought a handful of these devices – they’ve invested seriously in rolling out Velolaser technology across the country.
60 Units Across Spanish Road Network (€860,000 Investment)
The DGT has deployed approximately 60 Velolaser speed radar units across Spain’s road network, representing an investment of around €860,000. At roughly €14,300 per unit, these devices aren’t cheap, but the enforcement revenue they generate quickly justifies the expenditure. A single Velolaser positioned in the right location for a few hours can issue dozens of fines totalling tens of thousands of euros.
This fleet of 60 units might not sound like much when you consider Spain has over 165,000 kilometres of roads, but the strategic deployment and mobility of these devices means they punch well above their weight. Unlike fixed cameras that monitor one specific location continuously, these portable speed radar units can be repositioned daily, creating uncertainty for drivers about where enforcement is active.
The DGT’s investment in Velolaser technology represents a broader shift toward mobile, flexible enforcement systems that can be rapidly deployed to accident blackspots or areas where speeding complaints have been received. Rather than the lengthy process of installing fixed camera infrastructure, a Velolaser unit can be monitoring a problematic location within hours of a complaint being received.
Strategic Placement Locations
The effectiveness of Velolaser systems depends heavily on smart deployment strategies. The DGT uses traffic accident data, speed complaint reports, and road geometry analysis to identify optimal locations for radar operations.
Urban Area Enforcement
In urban environments, Velolaser speed radars are particularly effective in school zones, residential areas, and pedestrian-heavy districts where speeding poses significant safety risks. The compact size of these units allows them to be positioned on narrow pavements, behind street furniture, or even held by officers on foot patrol in shopping districts.
I’ve noticed increased Velolaser deployment in the urbanisations around the Costa Blanca during school drop-off and pick-up times. The DGT positions these radars on the approach roads to schools where parents often speed whilst rushing to beat the school bell. The combination of low speed limits (typically 20-30 km/h) and impatient drivers creates perfect conditions for enforcement – and revenue generation.
Urban deployment also targets notorious speeding zones on ring roads and through-traffic routes where drivers treat built-up areas like highways. The Avenida de Denia in Alicante, for example, sees regular Velolaser enforcement because drivers consistently exceed the 50 km/h limit on this straight, wide road that feels like it should be faster.
Secondary Road Monitoring
Spain’s secondary road network – the CV, MA, and regional roads that connect smaller towns – has historically been difficult to monitor consistently. These roads often have higher accident rates than motorways but receive less enforcement attention due to their dispersed nature and the logistical challenges of positioning traditional radar equipment.
Velolaser speed radars have transformed enforcement on these secondary roads. Their portability means officers can easily transport them to remote mountain passes, coastal roads, and rural routes where speeding is common but fixed camera infrastructure would be impractical. The five-hour battery life is particularly valuable here, allowing all-day enforcement in locations without power supplies.
I’ve seen Velolaser units deployed frequently on the CV-95 between Alicante and Murcia, a fast, winding road where British and Dutch expats (myself included, apparently) tend to drive too quickly. The radar is typically positioned after tight curves or at the crest of hills where drivers accelerate aggressively after navigating the slower sections.
Highway Speed Control Points
On Spain’s motorway network (autopistas and autovías), Velolaser deployment focuses on locations where traditional fixed cameras aren’t present but where speeding is prevalent. Common deployment zones include motorway slip roads where drivers are merging at excessive speeds, sections under roadworks with temporary speed restrictions, and approaches to toll plazas.
The portable speed radar’s multi-lane detection capability makes it ideal for motorway enforcement. A single Velolaser unit positioned on a bridge or central reservation can monitor all lanes simultaneously, identifying speeders regardless of which lane they’re using to attempt avoiding detection.
Motorway deployment often occurs during known high-traffic periods when speeding poses the greatest risk. Bank holiday weekends, the summer migration period (Operation Exit/Operation Return), and major sporting events all see increased Velolaser presence on the AP-7, A-7, and other major routes along the Mediterranean coast.
If you’re looking for reliable and affordable car hire, we recommend using DiscoverCars. It’s easy to use, with great prices and trustworthy service.Our favourite platform is DiscoverCars
Advantages Over Traditional Speed Detection Methods
Having been caught by both fixed cameras and now this bloody Velolaser, I can tell you these portable units have distinct advantages from an enforcement perspective.
Superior Camouflage and Discretion
The most significant advantage of Velolaser speed radar technology is its ability to be positioned virtually invisibly. At 50 centimetres tall and just 2 kilograms, these units can be concealed in ways that traditional radar equipment simply cannot.
I’ve driven past Velolaser units dozens of times without noticing them – until the one that caught me, of course, at which point I became acutely aware of how easily they blend into roadside environments. Positioned behind guardrails, tucked behind road signs, mounted on narrow bridge parapets, or even partially concealed in vegetation, these radars are designed to catch drivers behaving naturally rather than slowing temporarily for visible enforcement zones.
This discretion serves traffic safety objectives by encouraging consistent speed compliance rather than the “brake for the camera, then speed up again” behaviour that fixed cameras often produce. Of course, it’s also tremendously effective at generating fine revenue, which is why the DGT loves these devices so much.
Multi-Lane Detection Capability
Traditional radar guns typically require officers to aim manually at specific vehicles, making multi-lane enforcement challenging and potentially inaccurate when traffic is heavy. Velolaser speed radar systems can monitor multiple lanes simultaneously, automatically identifying speeding vehicles regardless of their lane position.
The laser-based targeting system locks onto individual vehicles within the detection zone, measures their speed, and captures photographic evidence – all automatically. On a three-lane motorway, a single Velolaser can monitor the slow lane, middle lane, and fast lane simultaneously, ensuring that speeders can’t avoid detection by choosing a particular lane.
This multi-lane capability also eliminates the ambiguity that sometimes affects traditional radar enforcement, where drivers argue that the radar was actually detecting a different vehicle. The Velolaser’s targeting system is so precise that the photographic evidence clearly shows which specific vehicle triggered the speed violation.
Vehicle Type Discrimination Technology
One of the more sophisticated features of Velolaser speed radar systems is their ability to discriminate between different vehicle types. This matters because speed limits in Spain vary depending on vehicle classification – motorcycles, cars, trucks, and buses all have different legal speed limits on the same road.
The Velolaser’s vehicle recognition capabilities mean it can automatically adjust violation thresholds based on vehicle type. A truck doing 100 km/h on a motorway where cars are permitted 120 km/h might be perfectly legal, but the same speed in a different vehicle type could be a violation. The Velolaser’s discrimination technology ensures that fines are issued appropriately based on vehicle classification.
This vehicle typing also provides valuable traffic data to the DGT, allowing them to analyse traffic composition, identify patterns in violations by vehicle type, and tailor enforcement strategies accordingly. If motorcycles are consistently speeding on a particular road, increased motorcycle patrol enforcement might be warranted. If heavy goods vehicles are the primary speeders, weight station checks might be intensified.
Day and Night Operation Efficiency
Unlike older radar systems that could struggle with low-light conditions or required flash photography that alerted drivers to enforcement presence, Velolaser speed radars operate equally effectively in daylight, twilight, and complete darkness.
The infrared laser technology works independently of ambient light conditions, and the camera systems employ infrared flash that’s invisible to drivers. This means violators don’t receive the courtesy warning flash that older systems provided – you don’t know you’ve been caught until the fine arrives in your mailbox weeks later.
Night-time enforcement with Velolaser is particularly effective because the radar units are even harder to spot in darkness, and drivers often feel more emboldened to speed when they perceive enforcement is less likely. The DGT has capitalised on this by conducting increased Velolaser operations during evening and night hours, particularly on roads where night-time accidents have been problematic.
Installation and Operational Flexibility
The versatility of Velolaser deployment is genuinely impressive from a technical standpoint, even if it’s frustrating as a driver.
Tripod Mounting Options
The most common Velolaser deployment method uses a compact tripod that elevates the radar unit to optimal height for speed detection and photographic evidence capture. These tripods are lightweight, quick to set up, and stable enough to operate reliably even in moderate wind conditions.
Tripod-mounted Velolaser units can be positioned on pavement edges, in central reservations, on bridge walkways, or anywhere flat ground is available. The setup process takes literally minutes – an officer can park, retrieve the Velolaser and tripod from the vehicle, position it strategically, activate the system, and return to the patrol car for remote monitoring in under five minutes.
The tripod configuration also allows precise aiming of the radar along the target road section. Officers can angle the unit to optimise detection range, ensure clear photographic evidence of number plates, and position the device for maximum concealment behind roadside furniture or vegetation.
Vehicle Dashboard Placement
For mobile enforcement operations, Velolaser speed radar units can be positioned directly on patrol vehicle dashboards, converting any traffic police car into a mobile speed enforcement unit. This dashboard mounting eliminates setup time entirely – the officer simply parks the vehicle in a strategic location, activates the Velolaser, and begins enforcement immediately.
Dashboard deployment is particularly effective for short-duration enforcement in multiple locations. An officer can monitor one location for 20-30 minutes, then relocate to another site a few kilometres away and resume enforcement within minutes. This mobility creates unpredictability that traditional fixed cameras cannot achieve.
The in-vehicle mounting also provides operational safety for officers. Rather than standing beside the road with a handheld radar gun in all weather conditions, officers can conduct enforcement from inside their patrol car, protected from traffic, adverse weather, and potential confrontations with angry drivers.

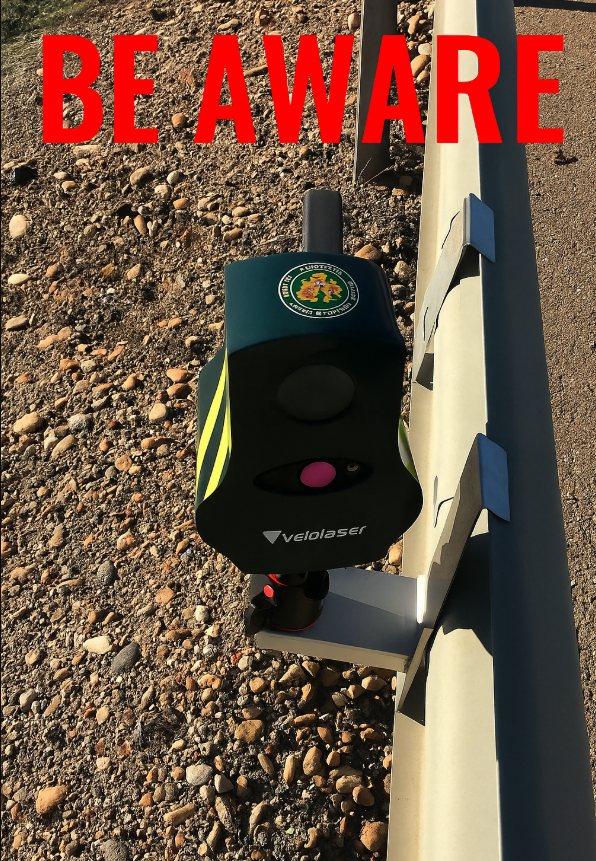

Guardrail and Bridge Installation
Creative mounting options extend to guardrails and bridge structures, where Velolaser units can be secured using specialised brackets. These elevated positions provide excellent sight lines for speed detection whilst making the radar units extremely difficult to spot from approaching vehicles.
Bridge-mounted Velolaser deployment is particularly effective on motorways and dual carriageways. Positioned on the side of a bridge or overpass, the radar can monitor traffic flowing underneath in both directions (though it typically monitors one direction at a time for evidentiary clarity). The elevated position also means the photographic evidence clearly captures vehicle number plates from above.
Guardrail mounting along motorway and autovía sections provides similar advantages. The Velolaser can be secured to the top rail of crash barriers in central reservations, positioning it directly between opposing traffic flows with excellent detection angles for vehicles in multiple lanes.
Motorcycle Patrol Integration
Perhaps the most mobile Velolaser deployment method involves motorcycle patrol units, where officers carry compact speed radar equipment that can be deployed virtually anywhere a motorcycle can access. This is particularly effective in urban environments, mountainous terrain, and areas where four-wheeled patrol vehicles would be conspicuous or unable to position strategically.
Motorcycle-mounted Velolaser operations allow enforcement in locations that would be impossible for car-based patrols. Narrow mountain passes, pedestrian zones, cycle paths where motorised vehicle access is restricted, and congested urban areas all become viable enforcement locations when officers on motorcycles can rapidly deploy and recover portable speed radar equipment.
I’ve encountered motorcycle officers with Velolaser units several times in the Sierra de Bernia mountains near Altea, where the twisting mountain roads are popular with speeding motorcyclists and sports car drivers. The patrol motorcycles can position themselves in scenic viewpoints and laybys, deploy the radar, and catch multiple speeders before relocating to another section of the route.
Detection and Enforcement Process
Understanding how you actually get nicked by one of these devices helps explain why contesting Velolaser tickets is generally futile.
Automatic Speed Violation Detection
The Velolaser speed radar continuously monitors traffic within its detection zone, measuring the speed of every vehicle that passes. When a vehicle exceeds the posted speed limit by more than the tolerance margin (typically 7 km/h for speeds under 100 km/h, or 7% for higher speeds), the system automatically flags it as a violation.
This automatic detection happens in milliseconds. The laser measures your speed, the processor compares it against the programmed speed limit and tolerance threshold, and if you’re over the limit, the violation recording process triggers instantly. There’s no human judgment involved until the fine processing stage – if you’re speeding, you’re getting caught, no exceptions.
The system’s discrimination algorithms ensure that only clear violations are recorded. If the laser reading is ambiguous, if multiple vehicles are too close together to clearly identify the speeder, or if environmental factors create measurement uncertainty, the system won’t record a violation. This discrimination significantly reduces the false positive rate and makes contesting fines extremely difficult.
Photographic Evidence Capture
The moment a speed violation is detected, the Velolaser’s integrated camera system captures multiple photographs as evidence. These images typically include a wide shot showing the vehicle in context with road markings and signage, and a close-up of the number plate for clear vehicle identification.
Modern Velolaser systems capture colour photographs with excellent resolution, clearly showing the vehicle make, model, colour, and registration number. The images also include a data overlay displaying the measured speed, location coordinates, timestamp, officer identification, and other relevant enforcement information.
This photographic evidence is crucial for the legal validity of the fine. Spanish traffic law requires that speed violations be documented with clear evidence, and the Velolaser’s photographs provide incontrovertible proof that your specific vehicle was exceeding the speed limit at a specific time and place.
Data Transmission to Traffic Officers
Once photographic evidence is captured, the Velolaser immediately transmits the violation data to the monitoring officer’s control device via WiFi or cellular connection. This real-time transmission allows officers to review violations as they occur, verify evidence quality, and make decisions about immediate interception if warranted.
For serious speeding violations (typically 40+ km/h over the limit), officers may use the real-time data to coordinate immediate traffic stops with mobile patrol units further along the road. The transmitted data includes vehicle description and registration number, allowing patrol officers to identify and safely intercept the vehicle.
For standard violations, the transmitted data flows directly into the DGT’s fine processing system without requiring immediate officer intervention. This automated workflow allows a single officer with a Velolaser unit to process dozens of violations per hour, something that would be impossible with traditional stop-and-ticket enforcement methods.
Fine Processing and Legal Documentation
After violation data is transmitted and verified, it enters the official fine processing system. The registered vehicle owner receives a notification by post (usually within 2-4 weeks of the violation), including the photographic evidence, details of the offence, the fine amount, and information about points that may be deducted from the driver’s licence.
The fine notification includes instructions for payment and information about how to contest the fine if the registered owner believes an error occurred. However, contesting Velolaser fines is rarely successful – the photographic evidence is typically irrefutable, and the laser technology’s accuracy is well-established in Spanish courts.
What can be contested is whether the registered owner was actually driving the vehicle. In Spain, the vehicle owner is presumed responsible for violations, but they can formally identify a different driver if someone else was using the vehicle at the time. This requires completing a statutory declaration and providing the actual driver’s details, transferring the fine and points deduction to them.
Book car rentals across Europe and the UK with AutoEurope — trusted since 1954 for competitive rates and quality service.AutoEurope (EU, UK)
Velolaser vs Other Speed Radar Technologies
Having now experienced both traditional and modern enforcement methods, the differences are significant.
Comparison with Fixed Speed Cameras
Fixed speed cameras (those yellow boxes mounted on poles that everyone knows about) represent the older generation of traffic enforcement. They’re highly visible, positioned permanently in specific locations, and primarily serve as speed deterrents rather than revenue generators – drivers simply slow down when they spot them, then accelerate again afterwards.
The Velolaser speed radar approach is fundamentally different. By being mobile and difficult to detect, these systems catch drivers behaving naturally rather than temporarily complying when they spot enforcement infrastructure. This produces more accurate data about actual speeding behaviour and arguably has a greater impact on overall speed compliance because drivers never know where they might be caught.
Fixed cameras do have advantages in specific circumstances. They provide continuous 24/7 monitoring of specific high-risk locations, require no officer presence, and their visibility creates a significant deterrent effect for location-specific speeding problems. However, they’re expensive to install and maintain, inflexible once positioned, and drivers quickly learn their locations and adjust behaviour only in those specific zones.
Advantages Over Mobile Radar Units
Traditional mobile radar units – the handheld radar guns that officers aim at traffic whilst standing roadside – have been the backbone of mobile enforcement for decades. However, they require officers to be physically present and exposed to traffic, can typically only monitor one vehicle at a time, and are relatively easy for drivers to spot.
Velolaser technology addresses all these limitations. Officers can monitor remotely from safe positions, the system tracks multiple lanes simultaneously, and the compact profile makes detection extremely difficult. The automated evidence capture also eliminates the human error factor that occasionally affects handheld radar operations.
Mobile radar units do retain some advantages in specific scenarios. They’re useful for immediate traffic stops where officers want to combine speed enforcement with vehicle documentation checks, mechanical inspections, or sobriety testing. The handheld units are also significantly cheaper than Velolaser systems, making them accessible to smaller municipal police forces with limited budgets.
Laser vs Traditional Doppler Radar Systems
The fundamental difference between Velolaser and traditional radar lies in the technology employed. Conventional radar systems transmit radio waves and measure the frequency shift (doppler effect) of reflected signals to calculate speed. Laser-based systems like Velolaser emit focused light beams and calculate speed through distance-time measurement.
Laser technology offers several concrete advantages. The narrow beam width eliminates the ambiguity of which vehicle triggered the speed reading in multi-lane scenarios. The laser system is less susceptible to interference from other radio frequency sources. And crucially for enforcement effectiveness, laser is much harder for consumer radar detectors to identify because it doesn’t continuously transmit detectable radio frequency energy.
Traditional doppler radar does have some operational advantages in poor visibility conditions where heavy rain, fog, or snow might affect laser performance. Radar waves can penetrate weather conditions that would scatter or absorb laser light. However, in the generally clear conditions typical of Mediterranean Spain, laser systems like Velolaser operate with near-perfect reliability year-round.
Legal and Regulatory Aspects
This is where it gets rather serious – and where fighting these fines becomes largely pointless.
Spanish Traffic Law Compliance
Velolaser speed radar systems are certified under Spanish traffic law and meet all legal requirements for speed enforcement evidence. The devices undergo regular calibration and certification by authorised testing facilities, ensuring measurement accuracy and legal admissibility of the evidence they produce.
Spanish traffic regulations (primarily the Ley de Tráfico and associated regulations) establish strict requirements for speed detection equipment, including accuracy thresholds, calibration frequency, and evidentiary documentation standards. Velolaser systems meet all these requirements, which is why contesting the technical accuracy of these devices in court is virtually impossible.
The DGT maintains comprehensive records of each Velolaser unit’s calibration history, operational deployments, and technical specifications. This documentation can be produced in court if a fine is contested, demonstrating that the device was properly maintained and certified for enforcement use at the time of the violation.
Evidence Admissibility in Court
The photographic evidence captured by Velolaser systems is automatically admissible in Spanish traffic courts. The images include embedded metadata confirming the date, time, location, measured speed, and device identification number, creating a comprehensive evidentiary package that’s extremely difficult to challenge.
Courts consistently uphold Velolaser speed violations because the evidence standard is so robust. Unless you can demonstrate that the device was not properly calibrated, that the photographs show a different vehicle than the registered one, or that some other extraordinary circumstance invalidates the evidence, conviction is essentially guaranteed.
I researched this thoroughly after receiving my ticket (obviously), and the legal consensus is clear: fighting a Velolaser fine without compelling contradictory evidence is a waste of time and money. The court costs if you lose can exceed the original fine, and the time investment rarely justifies the small chance of success.
Driver Rights and Appeals Process
Despite the difficulty of successfully contesting Velolaser fines, Spanish law does provide a formal appeals process. Registered vehicle owners have 20 days from receiving the fine notification to either pay (usually with a 50% discount if paid promptly) or file a formal challenge.
Grounds for appeal include: someone else was driving the vehicle (requiring statutory declaration and identification of the actual driver), the vehicle was stolen or being used without owner permission at the time of violation, technical evidence demonstrating the radar was malfunctioning, or proof that you weren’t exceeding the speed limit when the tolerance margin is properly applied.
The appeals process requires submitting formal documentation to the relevant traffic authority. If the initial appeal is rejected (which it usually is with Velolaser violations), you can escalate to administrative courts, though legal representation is generally necessary at this stage. The burden of proof in these cases falls heavily on the appellant – you must disprove the radar evidence rather than the prosecution having to prove guilt beyond technical doubt.
Speed Tolerance Margins
Spanish traffic law applies tolerance margins to all speed measurements to account for potential technical measurement variation. These margins are typically 7 km/h for measured speeds up to 100 km/h, and 7% for speeds above 100 km/h.
In practical terms, this means if you’re caught doing 77 km/h in a 70 km/h zone, your recorded violation speed would be 70 km/h (77 minus the 7 km/h tolerance), meaning no fine is issued. However, at 78 km/h (like my violation), the tolerance-adjusted speed becomes 71 km/h, which exceeds the limit and triggers a fine.
These tolerance margins are already built into the Velolaser’s programming, so the speed shown on your fine notification has already had the tolerance deducted. Don’t make the mistake of thinking you can argue for additional tolerance – the figure on your ticket is the final violation speed after all margins have been applied.
The margin calculation can work differently at higher speeds. If caught doing 130 km/h on a 120 km/h motorway, the 7% tolerance (approximately 9 km/h at that speed) would be deducted, giving a violation speed of 121 km/h – still over the limit, but by a smaller margin than the raw measurement suggests.
Frequently Asked Questions (FAQ)
Based on my own experience and research after getting caught by one of these devices, here are the questions everyone asks about Velolaser speed radars.
How accurate are Velolaser speed radars?
Velolaser speed radar systems are accurate to within ±1 km/h under optimal conditions, and typically within ±2 km/h in all operational scenarios. The laser-based distance-time measurement is inherently more accurate than traditional doppler radar, and regular calibration ensures measurement reliability. Combined with the tolerance margins Spanish law applies to all speed measurements, the risk of receiving an unjust fine due to measurement error is essentially zero.
Can Velolaser radars detect vehicles in both directions?
Technically yes, Velolaser speed radar systems can measure speeds of vehicles travelling in either direction relative to the radar. However, in practice, the DGT typically configures these devices to monitor traffic flowing in one direction at a time for evidentiary clarity. The photographic evidence needs to clearly show the speeding vehicle’s number plate, which is much more reliable when the radar is monitoring traffic from front or rear rather than trying to capture plates from multiple angles simultaneously.
What is the maximum speed Velolaser can measure?
The Velolaser speed radar can accurately measure speeds from 15 km/h up to 250 km/h. This enormous range covers every conceivable traffic scenario in Spain, from school zones with 20 km/h limits to the fastest legal motorway speeds (120 km/h) with plenty of headroom for detecting serious speeders. The device will register speeds above 250 km/h, but accuracy certification only extends to that threshold.
How long can Velolaser operate on battery power?
Velolaser portable speed radar units operate for approximately five hours on a single battery charge. This runtime is sufficient for a complete morning or afternoon enforcement shift. The DGT typically deploys these devices for 2-4 hour periods before repositioning them to different locations, meaning battery life rarely limits operational effectiveness. Many traffic units carry spare battery packs that can be swapped out to extend enforcement duration.
Are there warning signs for Velolaser radar zones?
Generally no – that’s rather the point. Fixed speed cameras in Spain are typically preceded by warning signs indicating “radar speed control” ahead, but mobile enforcement with Velolaser systems does not require advance warning. The DGT’s position is that speed limits should be obeyed constantly, not just in areas where enforcement is signposted. Some municipalities do place generic “speed controls in this area” signs on roads where Velolaser enforcement is frequent, but these don’t indicate specific locations or times of operation.
Can radar detectors identify Velolaser systems?
Most traditional radar detectors cannot reliably detect Velolaser speed radar systems. Because laser technology doesn’t continuously broadcast radio frequency signals like traditional radar, conventional detectors have nothing to detect until the laser actually targets a vehicle – by which point it’s too late. Some modern laser detectors claim to sense the infrared laser beam, but their effectiveness is questionable, and using radar/laser detectors in Spain occupies a legal grey area that can itself result in fines if detected by police. Essentially, don’t rely on technology to avoid speeding tickets – just obey the speed limits.
What types of vehicles can Velolaser distinguish between?
Velolaser systems incorporate vehicle classification algorithms that can distinguish between motorcycles, cars, vans, trucks, buses, and other vehicle categories. This classification is important because Spanish speed limits vary by vehicle type – trucks and buses often have lower speed limits than cars on the same roads. The classification system analyses the radar return signal characteristics and photographic evidence to automatically categorise vehicles, ensuring appropriate speed limits are applied when determining violations.
How does weather affect Velolaser radar performance?
Velolaser speed radar systems are designed to operate reliably in most weather conditions typical of Spanish climate. Light rain has minimal impact on laser performance, and the devices function normally in standard Mediterranean weather. Heavy rain, dense fog, or snow can potentially scatter the laser beam and reduce effective range, though these conditions are rare in most of Spain. The system includes automatic checks that prevent operation if environmental conditions compromise measurement accuracy, ensuring that evidence captured is always reliable.
What is the cost per Velolaser unit for traffic authorities?
Based on the DGT’s reported expenditure of €860,000 for 60 units, each Velolaser speed radar costs approximately €14,300. This price includes the radar device itself, mounting equipment, batteries, connectivity systems, and likely some training and support services. Whilst not cheap, the enforcement revenue generated by even a single Velolaser unit during a few hours of operation can be substantial, making these devices financially self-sustaining from the authority’s perspective.
Can Velolaser radars be controlled remotely?
Yes, this is one of the defining features of Velolaser technology. The WiFi and cellular connectivity allows traffic officers to monitor, control, and adjust radar settings remotely from a tablet or laptop. Officers can view live speed readings, review violation photographs as they’re captured, adjust detection sensitivity, and even relocate to monitor a different position – all without physically accessing the radar unit. This remote capability allows a single officer to effectively monitor multiple enforcement locations simultaneously.
Impact on Road Safety and Traffic Behaviour
Now for the question that matters: do these devices actually make roads safer, or are they just revenue generators?
Accident Reduction Statistics
The DGT reports that sections of road with regular Velolaser enforcement presence show measurable reductions in both average traffic speeds and accident rates. Specific statistics vary by location and road type, but reductions of 10-20% in average speeds and corresponding decreases in serious accidents are commonly reported.
The correlation between speed reduction and accident severity is well-established in traffic safety research. Even modest reductions in average speeds can significantly reduce both accident frequency and severity because stopping distances decrease and collision energy is lower. Whether you believe the DGT’s statistics or suspect some optimistic interpretation of data, the basic physics supports the argument that slower traffic is safer traffic.
What’s harder to measure is whether Velolaser deployment creates lasting behavioural change or just temporary compliance whilst enforcement is active. Cynically, I suspect many drivers (myself included, clearly) return to their habitual speeds once they perceive enforcement risk has passed. The mobility and unpredictability of Velolaser deployment does, however, create more persistent uncertainty than fixed cameras, which might encourage slightly more cautious driving even when no radar is visible.
Driver Behaviour Modification
The psychological impact of Velolaser enforcement extends beyond the immediate fine and points deduction. After receiving a speeding ticket, most drivers (again, myself included) become significantly more conscious of their speed for at least a few weeks or months. This heightened awareness represents a genuine if temporary modification of driving behaviour.
The unpredictability of Velolaser deployment creates a different psychological dynamic compared to fixed cameras. With fixed cameras, drivers learn locations and simply slow down at those specific points. With mobile enforcement that could be literally anywhere, the rational response is to maintain speed compliance more consistently. Whether drivers actually do this in practice is debatable, but the theoretical behavioural impact is sound.
Repeated violations and escalating fines do appear to create longer-lasting behaviour change. Spanish traffic law includes progressively severe penalties for repeat speeders, including potential driving bans for serious or repeated violations. Drivers who accumulate multiple speeding fines within a short period face losing their licence entirely, which certainly focuses the mind on speed compliance.
Revenue Generation for Traffic Enforcement
Let’s not pretend money isn’t part of this equation. A single Velolaser unit operating for three hours in a productive location can easily generate €10,000-€20,000 in fines. At that rate, the DGT’s entire €860,000 investment in 60 Velolaser units could theoretically be recouped in a few months of operation.
Traffic fine revenue in Spain is officially designated for road safety improvements, though how strictly this earmarking is enforced varies by jurisdiction. Cynics argue that speed enforcement has become primarily a revenue operation that incidentally improves safety, whilst authorities insist that revenue is a side effect of legitimate safety enforcement.
The reality probably lies somewhere between these positions. Velolaser deployment does appear to target genuinely problematic locations where speeding is prevalent and safety risks are elevated. However, the financial incentive to deploy these devices as frequently and widely as possible is undeniable, and the revenue they generate certainly encourages aggressive enforcement policies.
Future Developments in Portable Speed Radar Technology
The technology certainly isn’t going to get less sophisticated – or less annoying for drivers.
AI Integration and Smart Detection
Future iterations of portable speed radar technology will likely incorporate artificial intelligence and machine learning algorithms that enable more sophisticated traffic analysis. Rather than simply measuring speeds and detecting violations, AI-enhanced systems could analyse traffic patterns, predict dangerous driving situations before they occur, and automatically adjust enforcement priorities based on real-time risk assessment.
Machine learning could enable Velolaser systems to distinguish between dangerous speeding (aggressive driving in heavy traffic or poor conditions) versus lower-risk speeding (slightly exceeding limits on empty motorways in perfect conditions), potentially allowing more nuanced enforcement that focuses resources on genuinely dangerous behaviour.
AI integration might also improve vehicle classification accuracy, enabling more precise application of vehicle-type-specific speed limits and even distinguishing between commercial and private vehicles of similar physical characteristics.
Enhanced Connectivity Features
As 5G mobile networks continue to expand across Spain, future Velolaser systems will benefit from even faster, more reliable connectivity with lower latency. This could enable true real-time video streaming from enforcement locations, allowing central command centres to monitor multiple radar positions simultaneously and coordinate responses more effectively.
Enhanced connectivity might also facilitate integration with other traffic management systems. Velolaser data could feed into dynamic traffic information systems that warn drivers of congestion ahead, or integrate with variable speed limit signs that automatically adjust based on detected traffic flow and speeds.
Cloud-based data processing and storage would allow more sophisticated analysis of enforcement patterns, identifying optimal deployment times and locations based on historical violation data, weather patterns, traffic density, and accident statistics.
Improved Camouflage and Deployment Options
Manufacturers are developing even more compact and discrete speed radar technologies. Future systems might be small enough to be completely concealed within road furniture, integrated into existing street furniture like traffic signs or lamp posts, or even deployed from unmanned aerial vehicles (drones) for temporary monitoring of specific road sections.
Semi-permanent deployment options that allow Velolaser units to remain in position for extended periods (days or weeks rather than hours) with solar power supplementation or hardwired power connections could blur the line between “mobile” and “fixed” enforcement, creating persistent monitoring in high-priority locations without the visibility of traditional fixed cameras.
Weatherproofing improvements will enable year-round deployment in all conditions, whilst night vision and thermal imaging enhancements will improve photographic evidence quality in low-light and adverse weather scenarios.
The trajectory is clear: speed enforcement technology will become more ubiquitous, more difficult to detect, and more sophisticated in its targeting and evidence collection. For drivers, this means the already slim chances of speeding undetected will continue to diminish. The pragmatic response is simply to accept that speed limits will be increasingly well-enforced and adjust driving behaviour accordingly – something I’m now acutely motivated to do after my recent €100 lesson in Velolaser effectiveness.
The bottom line is this: Velolaser speed radar represents a fundamental shift in traffic enforcement capability. These compact, mobile, highly accurate laser-based systems have eliminated many of the limitations that previously constrained speed enforcement efforts. Whether you view them primarily as safety tools or revenue generators, their effectiveness at detecting and documenting speeding violations is undeniable. As someone who’s now experienced their capabilities first-hand, I can confirm they work exactly as advertised – and they’ll catch you if you’re not paying attention to your speedometer.
They have actually been in use since 2018/2019, but this is the first time I have personally come across this system. A friend I was telling this to, suggested I look at Drive Social app from Google play for driving advice.
